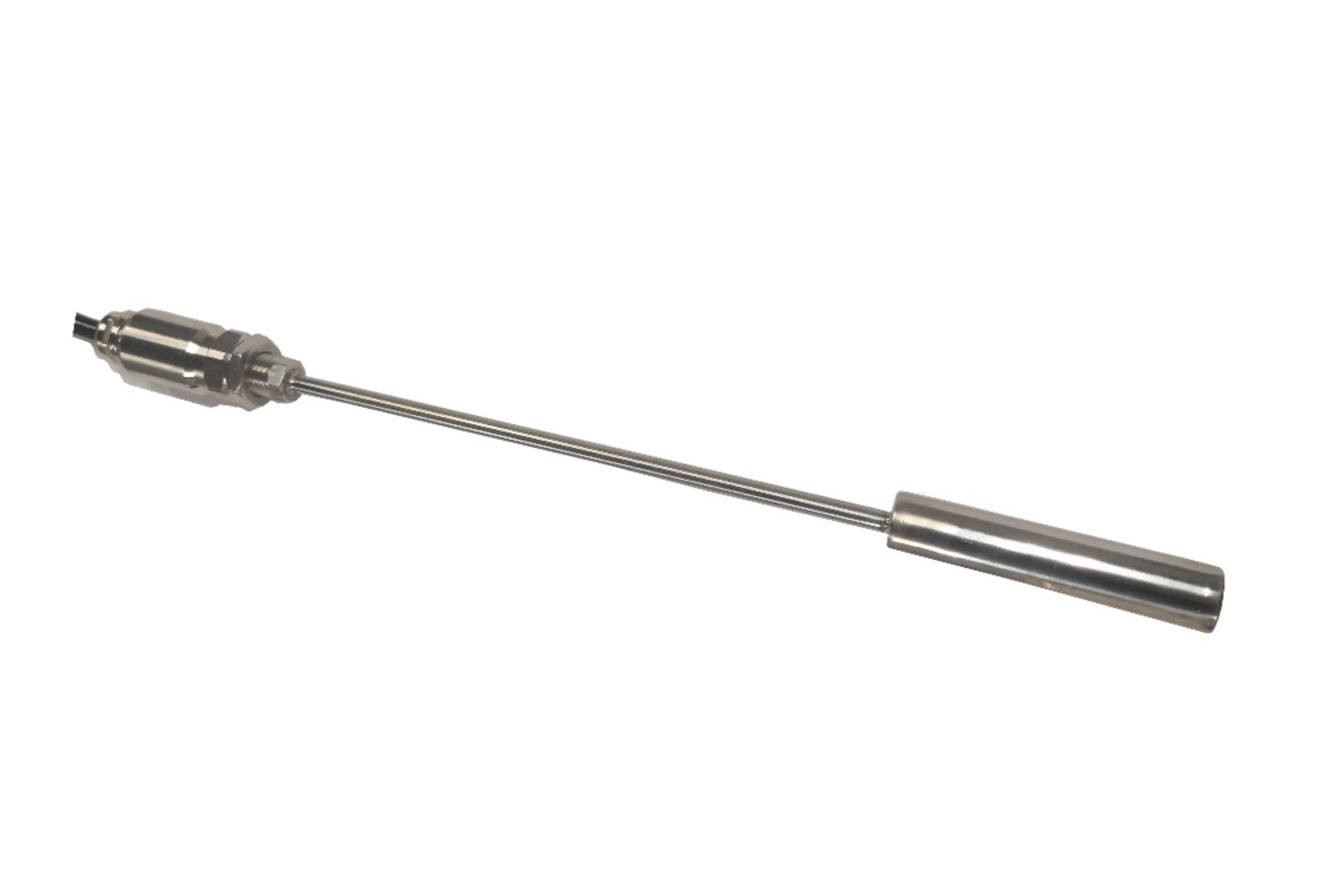

This product uses OEM pressure sensor with 316L stainless steel isolation diaphragm as signal measurement element, and through computer automatic test, zero point and sensitivity temperature compensation for a wide temperature range by laser resistance adjustment process. The amplifier circuit is located in the stainless steel housing, which converts the sensor signal to the standard output signal. It has strong anti-interference, overload and impact resistance, small temperature drift, high stability, and high measurement accuracy, and is the ideal pressure measuring instrument in the field of industrial automation.
1. Technical parameters
Measuring medium: liquid or gas (compatible with contact material)
Overall material: diaphragm - 316 l stainless steel (contact with the medium) thread interface - 304 stainless steel (contact with the medium) shell - 304 stainless steel seal nitrile rubber (contact with the medium) -- -
Pressure range: 0-10kpa
Pressure mode: gauge pressure, absolute pressure, negative pressure
Output signal: 4 ~ 20mA (default), 0 ~ 10V, 0 ~ 5V, 1 ~ 10V, 1 ~ 5V, 0.5 ~ 4.5V (customized) RS485 (Standard Modbus-RTU protocol)
Power supply voltage: 12 ~ 36VDC (unconventional custom)
Accuracy class: 0.5%FS (range ≥10KPa default) 0.25%FS (range ≥10KPa customized) 1%FS (range less than or equal to 10KPa default)
Working condition: medium temperature -10 ~ 70℃
Ambient temperature: -20 ~ 85℃
Ambient humidity: 0% ~ 95%RH (no condensation, no condensation)
Temperature compensation :-10 ~ 70℃
Seismic performance: 10g (20... 2000HZ)
Overload capacity: 200% range
Response frequency: analog signal output ≤500HZ, digital signal output ≤ 5HZ
Stability: ±0.1%FS/ year
Temperature drift: ±0.01%FS/℃ (within the temperature compensation range)
Protection level: IP65 (no display), IP54 (display)
Maximum power: ≤0.02Us (W)
Wiring method or option: 1, waterproof direct lead 2, aviation plug
