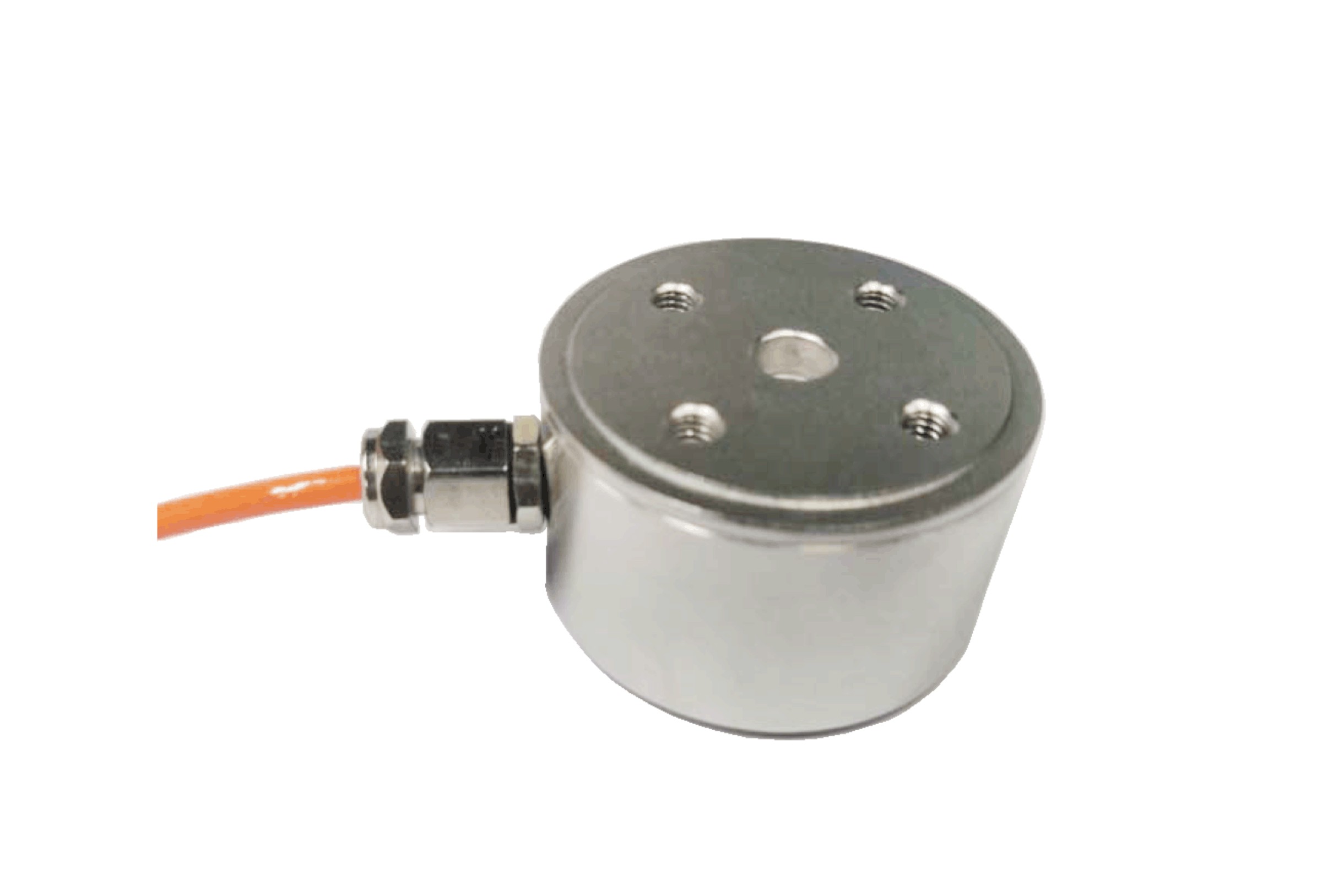

Pressure Sensor
- Product model: MSPZ-30-4125
- Working method: Pressure conversion
- Input voltage: 24V
- Working temperature: -20-80℃
- Product usage: Automated assembly, medical assembly, automotive press assembly and testing fields
- Sales type: Hot sales
Description
Features and Uses
1、Tight construction
2、High dynamic response frequency
3、High temperature could be customized for injection molding,extrusion and other manufacturing processes
4、 Suitable for automotive press fit、automated assembly、3C products testing、new energy product assembly、medical testing、robot、mold assembly and other industrial testing and insertion force test instruments and etc
Parameters
| Range | 0-200kg | Material | Stainless steel |
| Output sensitivity | 2.0±0.05mv/v | Impedance | 350Ω |
| Zero output | ±2%F.S | Insulation resistance | >5000MΩ/100VDC |
| Nonlinearity | 0.05%F.S | Service voltage | 5-10v |
| Repeatability | 0.03%F.S | Safety overload Operating temperature range |
20–80°C |
| Creep | 0.03%F.S | Operating temperature range Cable dimension Ultimate overload |
150% |
| Temperature sensitivity drift | 0.03%F.S./10°C | Ultimate overload |
200% |
| Zero temperature drift | 0.05%F.S./10°C | Cable dimension TEDS control | Φ3X2m |
| Cable connection mode EX+:RED EX-:BLACK Sig+:GREEN Sig-:WHITE | |||
