Product characteristics
1, neutralizing ion electrostatic rapid.
2, the ion airflow covers a large area.
3, wide range of wind regulation.
4, there is a special ion emission cleaner.
5, there is a special cold air heating device.
6. Ionization indicator

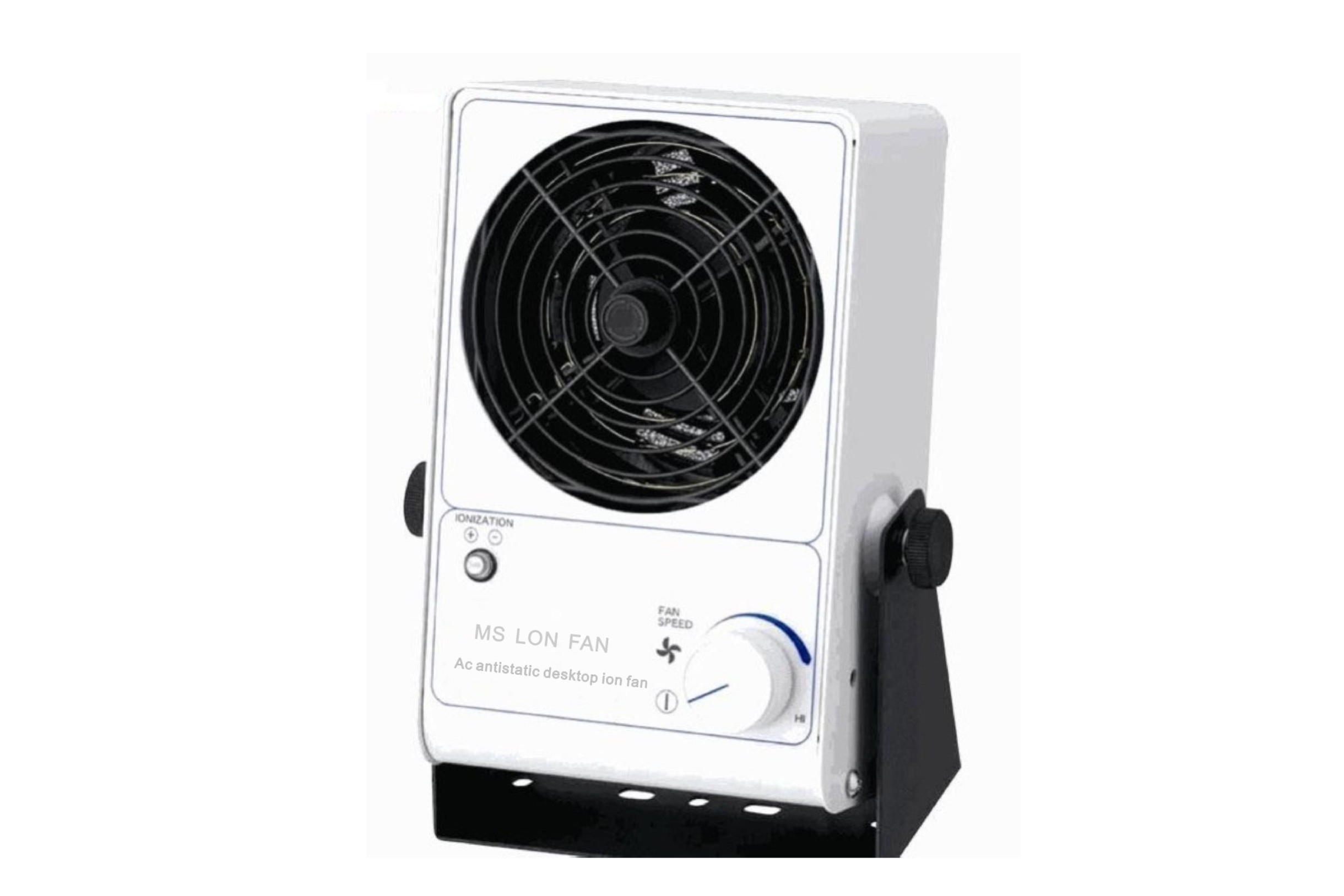

7, the fan has good grounding protection. An ion fan is a desktop ion eliminator that provides a balanced ion flow over a wide range of concentrated areas.
Product use
1: The formation of resin plate products, film processing, etc.
2: Integrated circuit printing.
3: ESD protection of electronic components.
4: optical machine, precision parts of dust removal, electricity removal.
Technical parameters
Model | MS-DF01 |
Working mode | Pluse AC |
Output voltage | ±6KV |
Ion balance | ±30(adjustable) |
Output frequency | 20-50Hz |
Power voltage | DC24V |
Working current | <1000mA |
Operating temperature | 0℃-50℃ |
Working humidity | 36-65%(non-condensing) |
Working distance | >30cm |
Maximum speed | 45-110CFM(adjustable) |
Extinction time | about 0.2S |
