MS DC anti-statics advantage:
1. Using low voltage DC 24V power supply, without high voltage transmission, safety, high efficiency, energy saving and environmental protection, widely used in printer car. No high voltage transmission is required to avoid the danger of electric shock after line damage and no interference caused by high voltage.
2. Adjustable output frequency: according to the different installation height and the relative moving speed of the eliminated object, select the appropriate frequency to achieve the best electrostatic elimination effect.
3. Ion balance adjustment function: Adjust the balance of output ions as needed to achieve the best effect of eliminating static electricity.
4. Small size, easy to install
5. Tungsten steel needle is durable

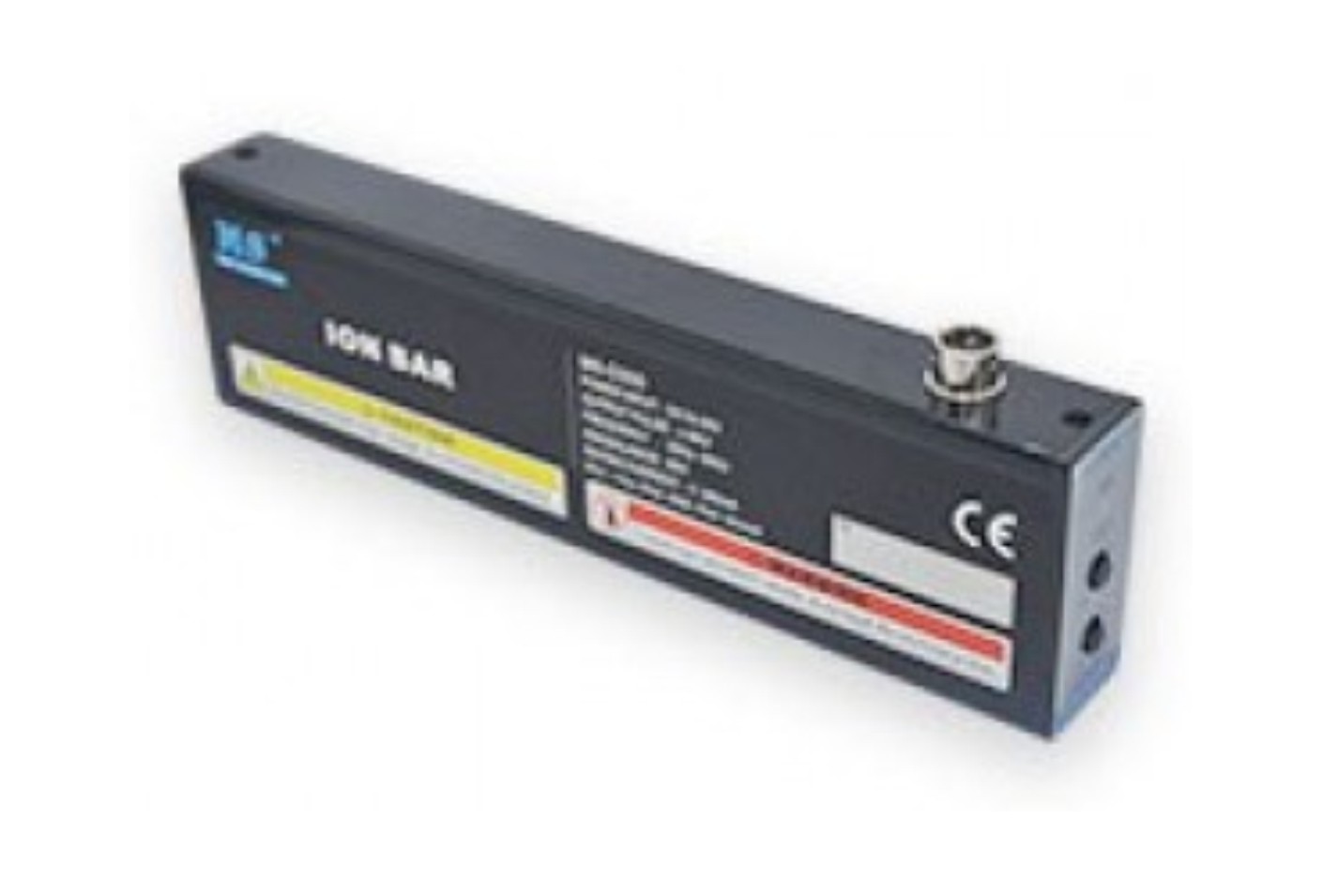

MS-D300 Electrostatic eliminator product features:
Model |
MS-D300 |
Working mode |
PluseAC |
Output voltage |
±6KV |
Ion balance |
60V (Adjustable) |
Output frequency |
20Hz-50Hz(Factory setting20Hz) |
Supply voltage |
DC24V (DC18-30V) |
Working current |
≤300mA |
Operating temperature |
0℃-50℃ |
Working humidity |
<70% |
Working distance |
15-100mm ( Distance from the medium 50mm) |
Number of discharge pins |
10 piece |
Overall length |
300mm |
Power supply and wiring:
This product uses DC 24V power supply, corresponding interface is 3Pin aviation plug:
Brown wire, Pin1: Connect to the positive terminal of the +Vcc 18-30V power supply
Blue wire, Pin2: GND negative power terminal
Yellow and green cables, Pin3: Grounding
