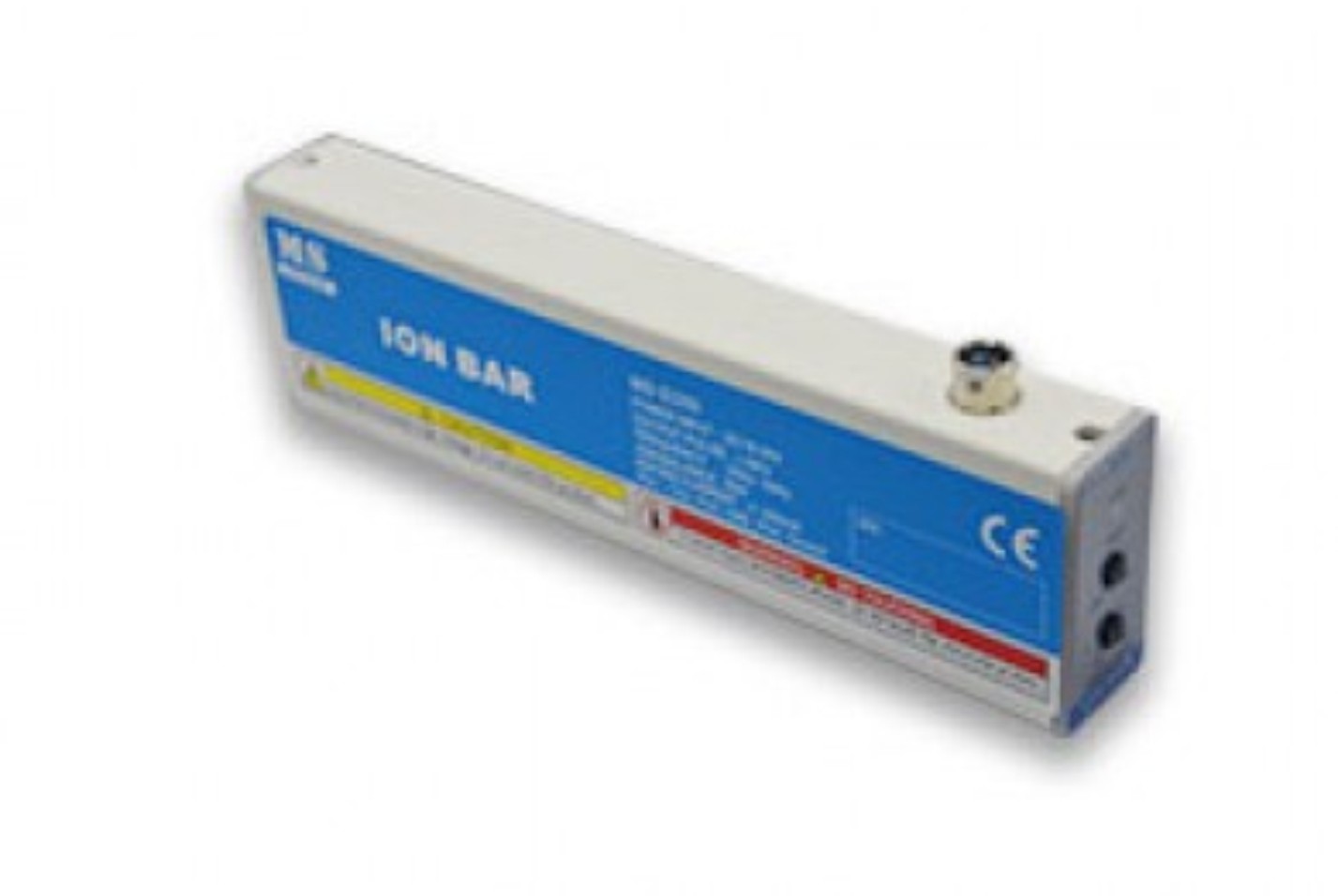

MS-D300 Electrostatic eliminator product features:
Model |
MS-D300 |
Working mode |
PluseAC |
Output voltage |
±6KV |
Ion balance |
60V (Adjustable) |
Output frequency |
20Hz-50Hz(Factory setting20Hz) |
Supply voltage |
DC24V (DC18-30V) |
Working current |
≤300mA |
Operating temperature |
0℃-50℃ |
Working humidity |
<70% |
Working distance |
15-100mm ( Distance from the medium 50mm) |
Number of discharge pins |
10 piece |
Overall length |
300mm |
Power supply and wiring:
This product uses DC 24V power supply, corresponding interface is 3Pin aviation plug:
Brown wire, Pin1: Connect to the positive terminal of the +Vcc 18-30V power supply
Blue wire, Pin2: GND negative power terminal
Yellow and green cables, Pin3: Grounding
