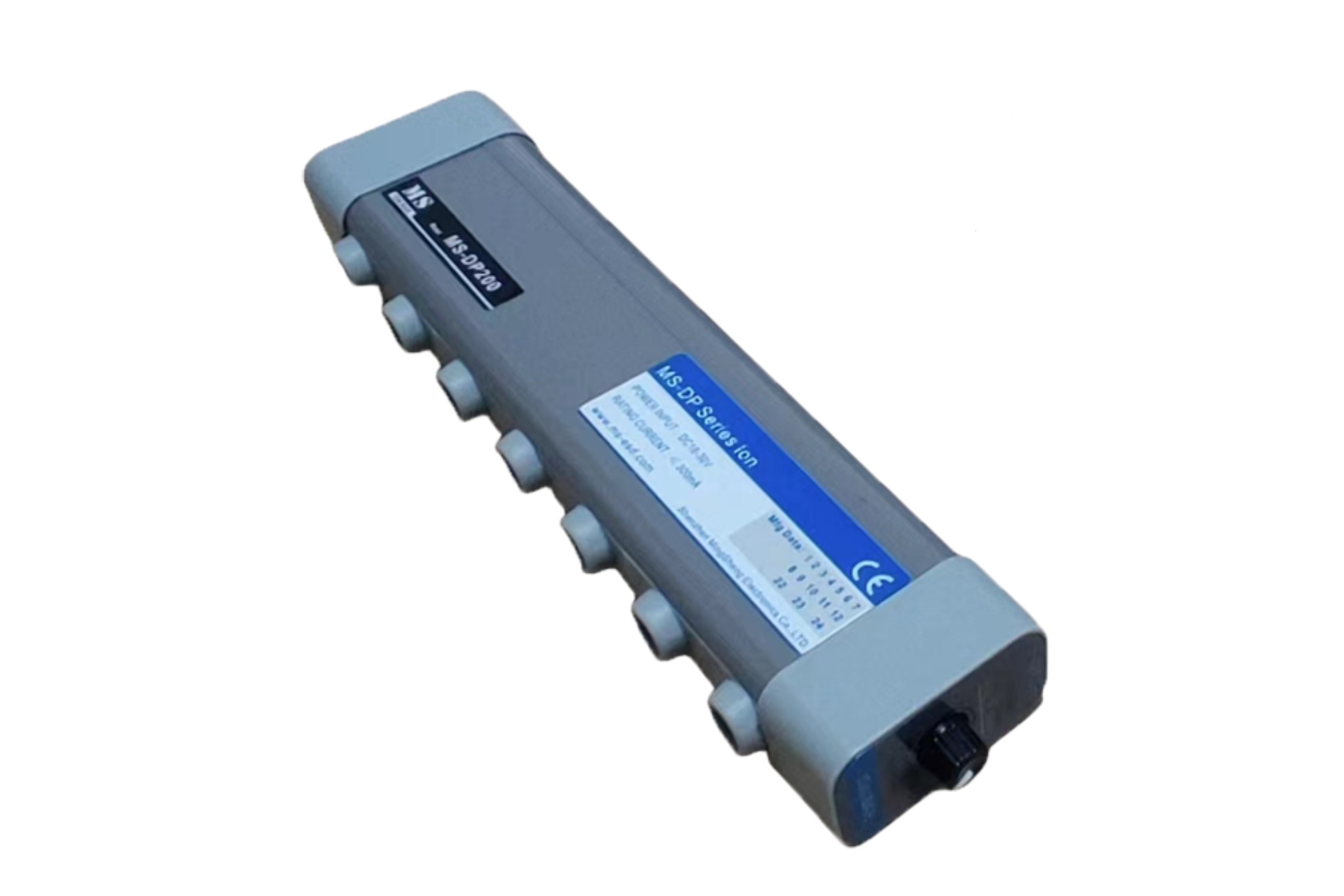

Model:MS-DP200

MS DC anti-statics advantage:

1. Using low voltage DC 24V power supply, without high voltage transmission, safety, high efficiency, energy saving and environmental protection, widely used in  printer car. No high voltage transmission is required to avoid the danger of electric shock after line damage and no interference caused by high voltage.

2.  Adjustable output frequency: according to the different installation height and the relative moving speed of the eliminated object, select the appropriate frequency to achieve the best electrostatic elimination effect.

3. Ion balance adjustment function: Adjust the balance of output ions as needed to achieve the best effect of eliminating static electricity.

4. Small size, easy to install

5. Tungsten steel needle is durable

MS-DP series Electrostatic eliminator product features:

Model	MS-DP200
Working mode	PluseAC
Output voltage	±7KV
Barometric magnitude	＜2MPa
Output frequency	1Hz-60Hz(Factory setting20Hz)
Supply voltage	DC24V (DC18-32V)
Working current	≤300mA
Operating temperature	0℃-50℃
Working humidity	＜70%
Working distance	15－100mm (Distance from the medium 50mm)
Tracheal connection volume	1/8 thread straight head gas pipe
Overall length	200mm(180mm-600mm,customizable )

Power supply and wiring:

This product uses DC 24V power supply, corresponding interface is 3Pin aviation plug:

Brown wire, Pin1: Connect to the positive terminal of the +Vcc 18-30V power supply

Blue wire, Pin2: GND negative power terminal

Yellow and green cables, Pin3: Grounding

Power wiring: Use at least 0.3 square mm wire diameter, or US gauge 22AWG-20AWG wire gauge;

This product is a new generation of technology, higher safety: because each tungsten steel discharge needle is independent, and the circuit is added to attenuate the current, so that its output current is reduced, direct contact with the needle will not lead to electric shock, only a little numb feeling, but it is fully enough to deal with the current to eliminate static electricity, safety.

Eliminating static effect:

Positive and negative high voltages are alternately applied to a single electrode needle, so that the electrode produces ions of both polarity, and the frequency of the occurring ions can be changed. Therefore, the appropriate frequency can be adjusted according to the installation height for optimal and fast static elimination.
