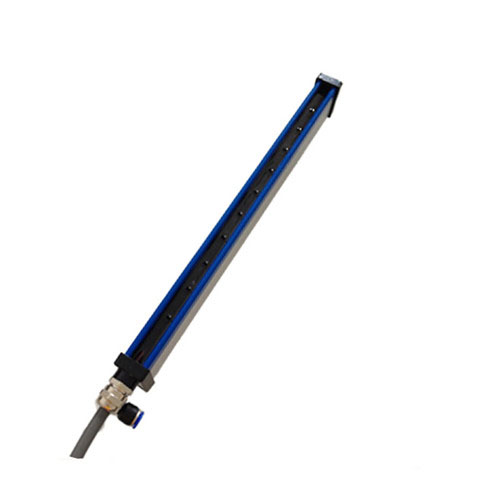

MS-2500 induction ion rod, compact and beautiful. The firing needle uses high-efficiency tungsten steel needle, accurately arranged without blind area, adopts advanced anti-electric shock technology, and does not spark (pull arc). Suitable for large, medium and small mechanical equipment matching use, easy installation.
Product characteristics
• Use advanced anti-shock technology to quickly eliminate static electricity.
• The whole adopts epoxy resin encapsulation, which is not easy to pollute, suitable for various working environments.
• The shell is made of alloy material, and the interior is made of imported material with high insulation performance, which is safe and reliable and has long service life.
• Excellent anti-static performance, can quickly and completely eliminate static electricity.
Application field
Generally used in film, electronics, printing, dyeing, spray, packaging electronics, optoelectronics, plastic and textile manufacturing industries.
Technical parameters::
Ionic electrostatic eliminator |
|
Model number |
MS-A2500 |
Input voltage |
6.0KV 25W |
Working distance |
30-100mm |
volume |
Length 100-3000mm (can be customized according to customer requirements) |
Housing material |
Aluminium alloy |
Internal catheter |
PVC plastic parts, silicone wire |
Tip material |
Tungsten needle |
Equilibrium voltage |
Ion rod balance voltage <±50V, maintenance and cleaning cycle of 6 months |
Ion high voltage generator |
|
Model number |
MS-WS630 |
Input voltage |
220V AC50/60HZ |
power |
25W MAX |
Current consumption |
≤3.5mA |
Output voltage |
6.0KV AC |
Output interface |
1个 |
load |
The ion generator and high voltage wire are 2 meters long |
Overall dimension |
140×100×80mm |
weight |
3kg |
Ion high voltage generator
(1) High performance magnetic leakage protection device, with overvoltage, short circuit protection characteristics.
(2) Low power consumption, high energy, safe and reliable, excellent performance.
(3) Easy to operate and strong environmental applicability.
(4) Quick discharge interface, easy to install.
(5) sealed moisture-proof structure, internal glue sealing, suitable for high humidity environment
