Shenzhen Mingsheng Electronics is located in Longgang District, Shenzhen. It is an enterprise that integrates the research and development, manufacturing, sales, and service of electrostatic elimination equipment. The main products of the company are: electrostatic eliminators, ion rods, electrostatic ropes, electrostatic generating rods, high-voltage generators, corona machines, electrostatic ropes, electrostatic brushes, ion guns, ion fans, and other electrostatic elimination equipment. The company adheres to seeking development through quality and survival through reputation. For many years, the company has provided satisfactory services to enterprises across the country, winning the trust and praise of numerous enterprises, and working together to achieve mutual benefit and win-win situation for enterprises.

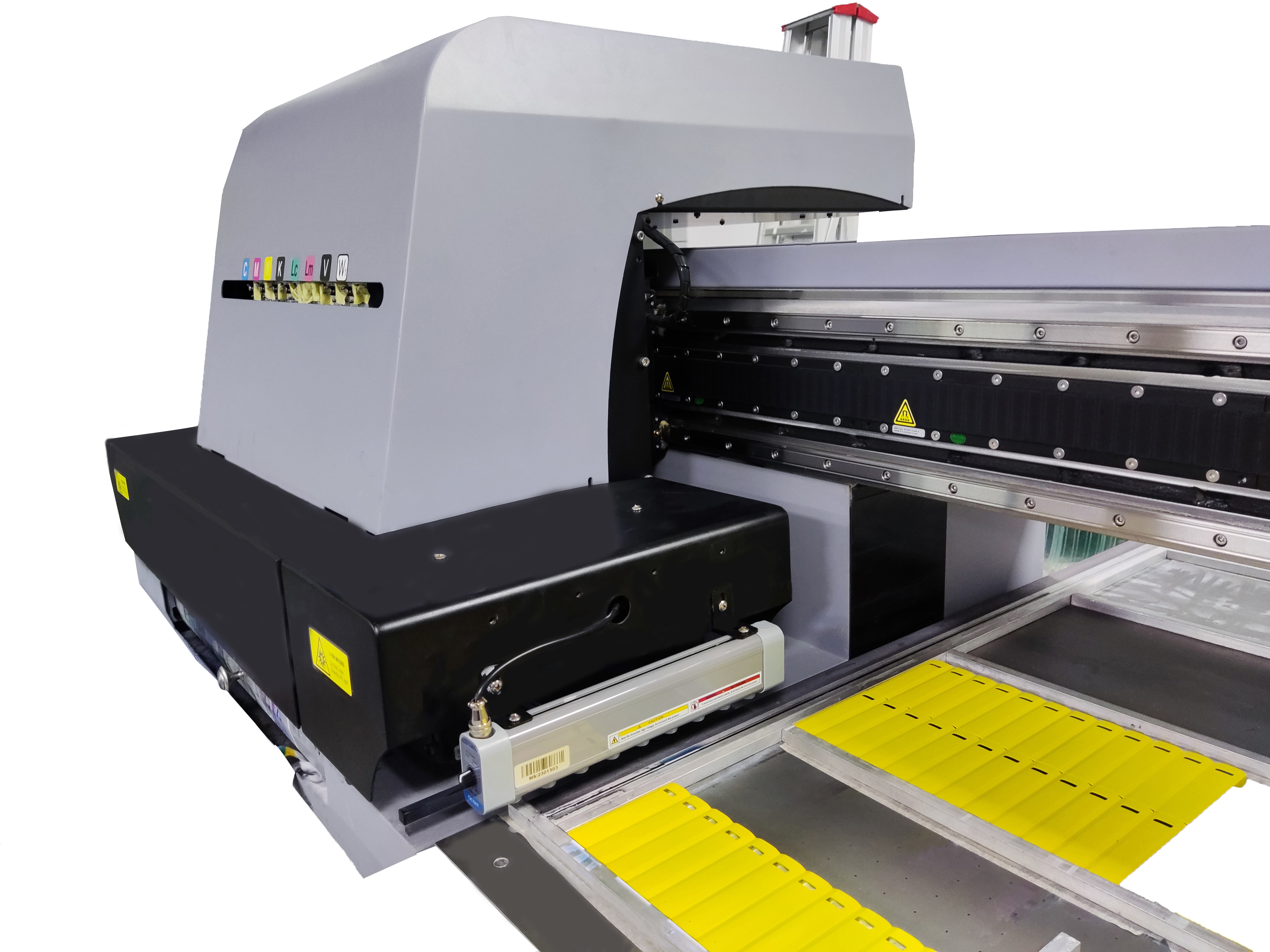

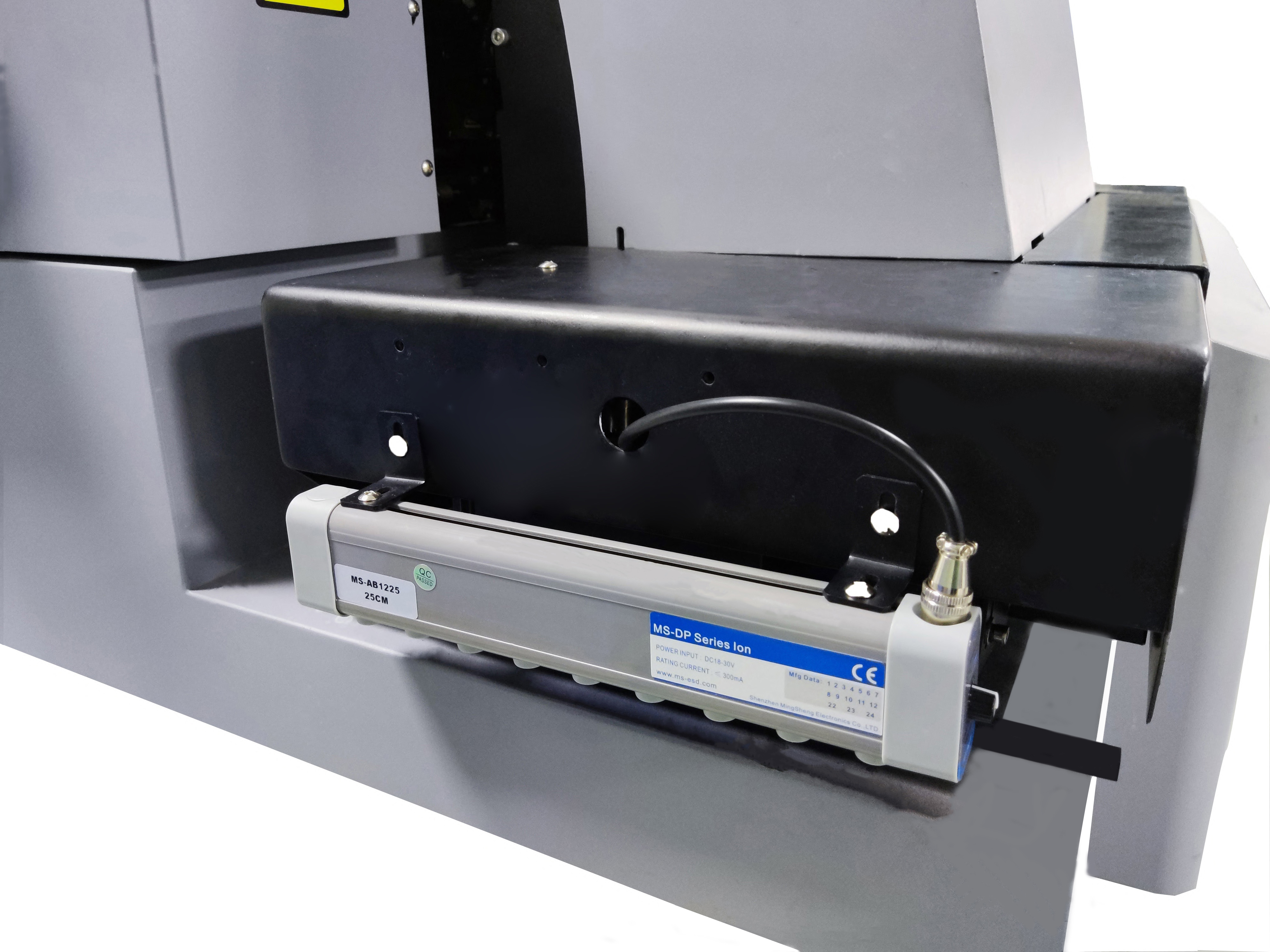

MS-DP Static eliminator is widely used in flat printer static eliminator, printer static eliminator, UV coil printer static eliminator
MS DC anti-statics advantage:
2. Adjustable output frequency: according to the different installation height and the relative moving speed of the eliminated object, select the appropriate frequency to achieve the best electrostatic elimination effect.
3. Ion balance adjustment function: Adjust the balance of output ions as needed to achieve the best effect of eliminating static electricity.
4. Small size, easy to install
5. Tungsten steel needle is durable
MS-D300 Electrostatic eliminator product features:
Model |
MS-D300 |
Working mode |
PluseAC |
Output voltage |
±6KV |
Ion balance |
60V (Adjustable) |
Output frequency |
20Hz-50Hz(Factory setting20Hz) |
Supply voltage |
DC24V (DC18-30V) |
Working current |
≤300mA |
Operating temperature |
0℃-50℃ |
Working humidity |
<70% |
Working distance |
15-100mm ( Distance from the medium 50mm) |
Number of discharge pins |
10 piece |
Overall length |
300mm |
Power supply and wiring:
This product uses DC 24V power supply, corresponding interface is 3Pin aviation plug:
Brown wire, Pin1: Connect to the positive terminal of the +Vcc 18-30V power supply
Blue wire, Pin2: GND negative power terminal
Yellow and green cables, Pin3: Grounding
